Detail

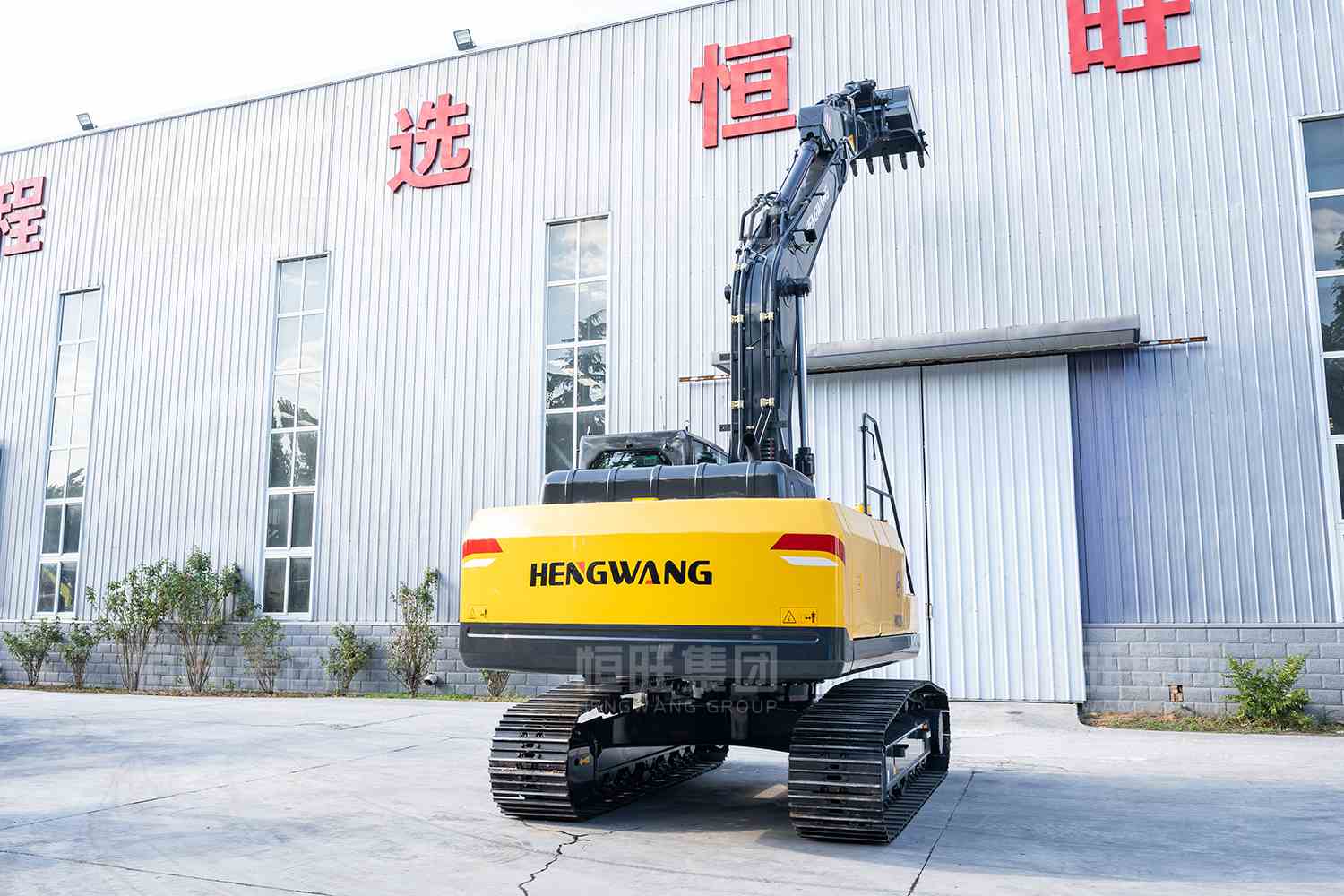

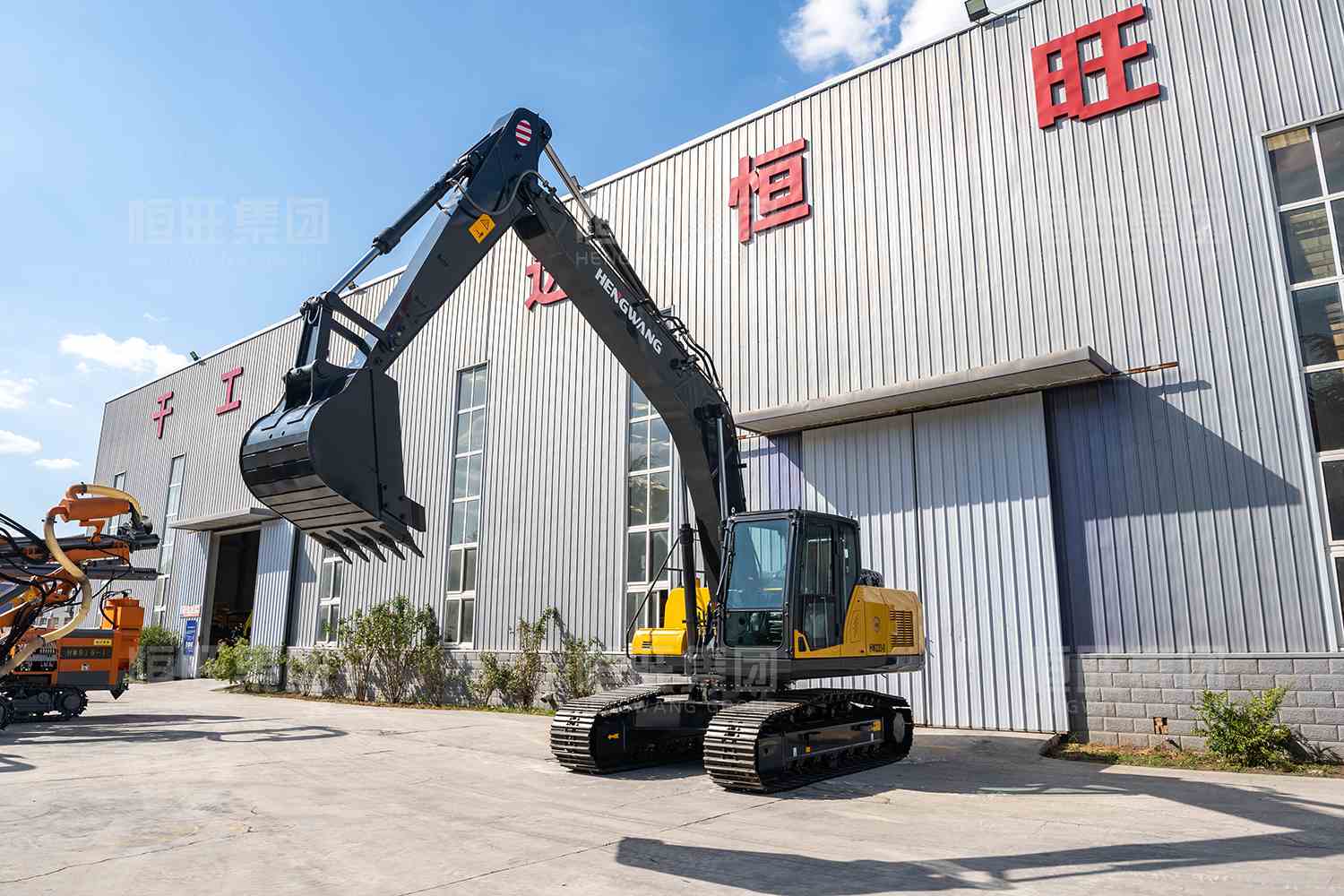

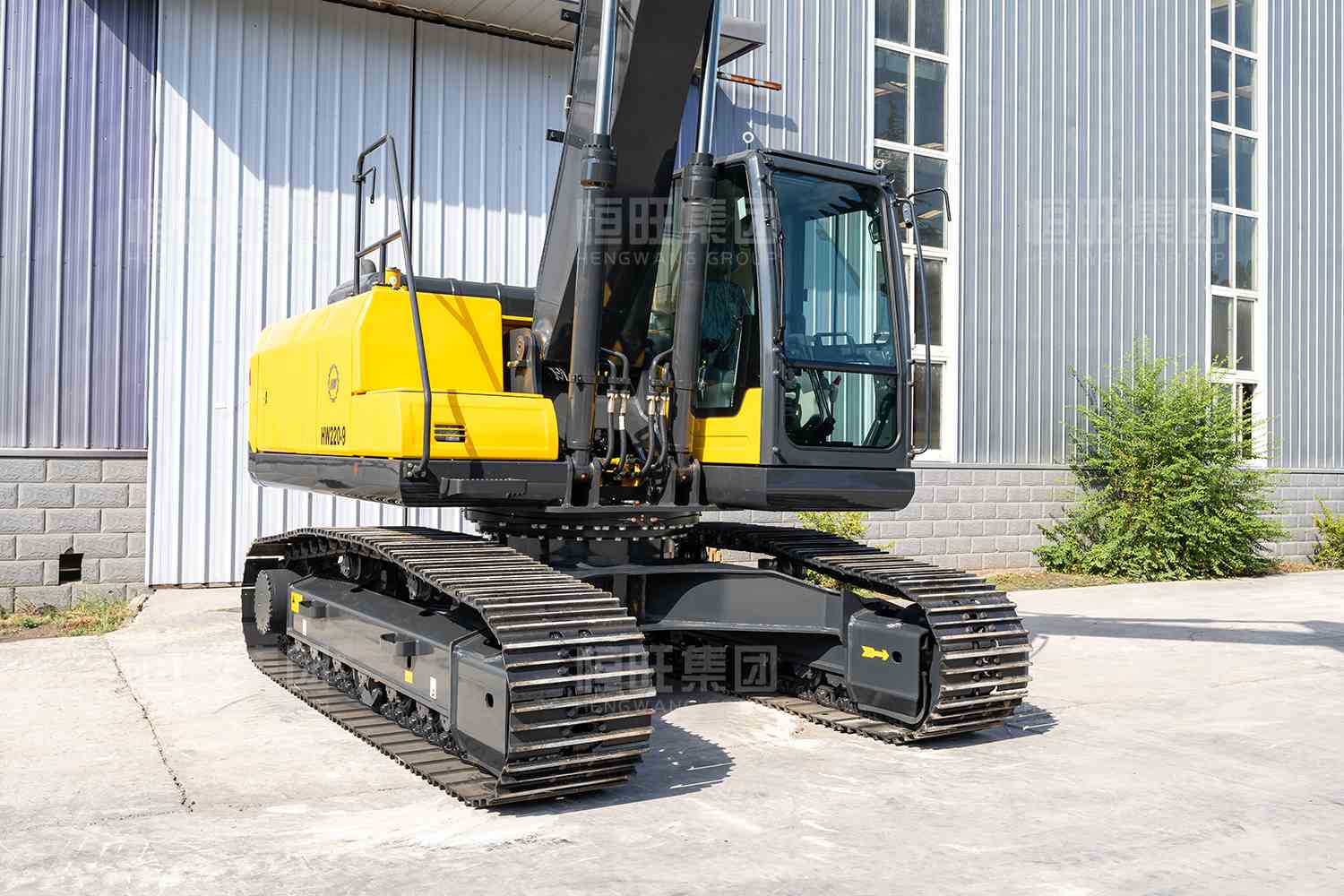

HW220-9 crawler excavator is suitable for various engineering environments, including municipal engineering, earthwork engineering, landscaping, road maintenance, concrete crushing, river dredging, forestry logging, engineering drilling, concrete leveling, loading and unloading goods, etc. The machine can quickly replace various types of working devices, and is equipped with various attachments such as digging bucket, hydraulic hammer, rotary grab, screw drill, vibrating rammer, electric suction cup, etc. to meet customers' various engineering needs. It is easy to replace and operate.
Parameter
| Working weight | 22T | Bucket capacity | 1m³ |
| Engine brand | Cummins | Power/Speed | 133kw/2000rpm |
| Dimensions | 9390*2780*3120 | Fuel tank capacity | 350L |
| Hydraulic tank capacity | 246L | Maximum digging depth | 6515mm |
| Maximum digging height | 9275mm | Maximum unloading height | 6560mm |
| Maximum digging radius | 9680mm | Minimum turning radius | 3630mm |
| Bucket digging force | 145KN | Stick digging force | 112KN |
| Traction | 196KN | Work pressure | 37kpa |
| Boom length | 5700mm | Stick length | 2900mm |
| Driving speed | 5.2/3.5(km/h) |

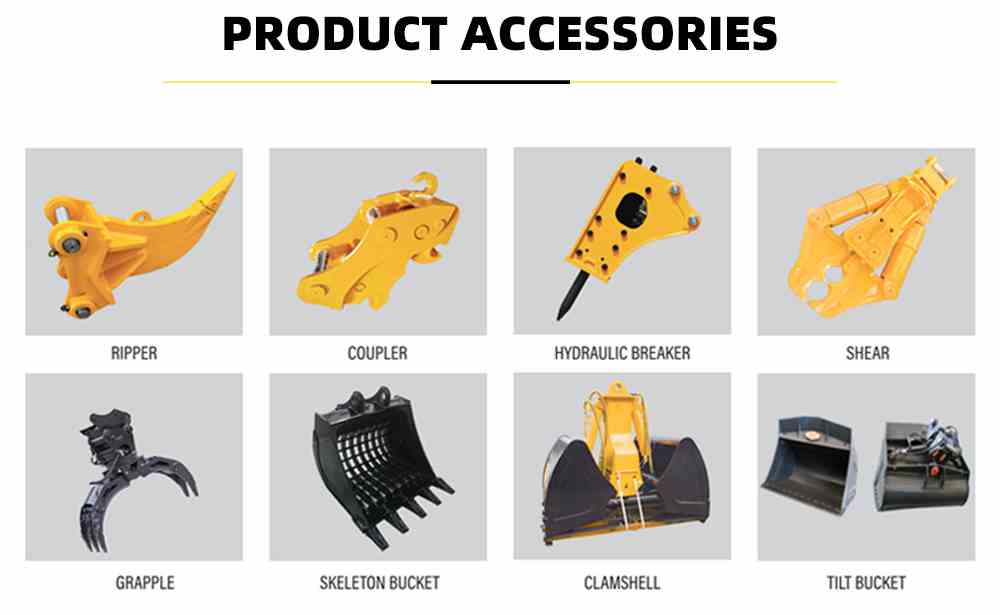

Product Accessories
Outstanding Features
High quality engine:Aprecise combination of lowerengine speedsanda large hydraulic pump provides optimum performance while consuming less fuel.
Hydraulic system:Advanced point hydraulics provide the best balance of power and eficiency while giving you the control you need to meet your precise digging requirements.
Easy to maintain:With extended and more synchronized maintenance Intervals,you can get more work done for less than previous models.
Adequate inventory:We have sufficlent production capacity to produce excavators in larqe quantities and are ready for fast delivery at any time.
Product Application
Company Information
Certificate
Exhibition
Packaging&Shipping
Inquire now for the best price.
