Detial

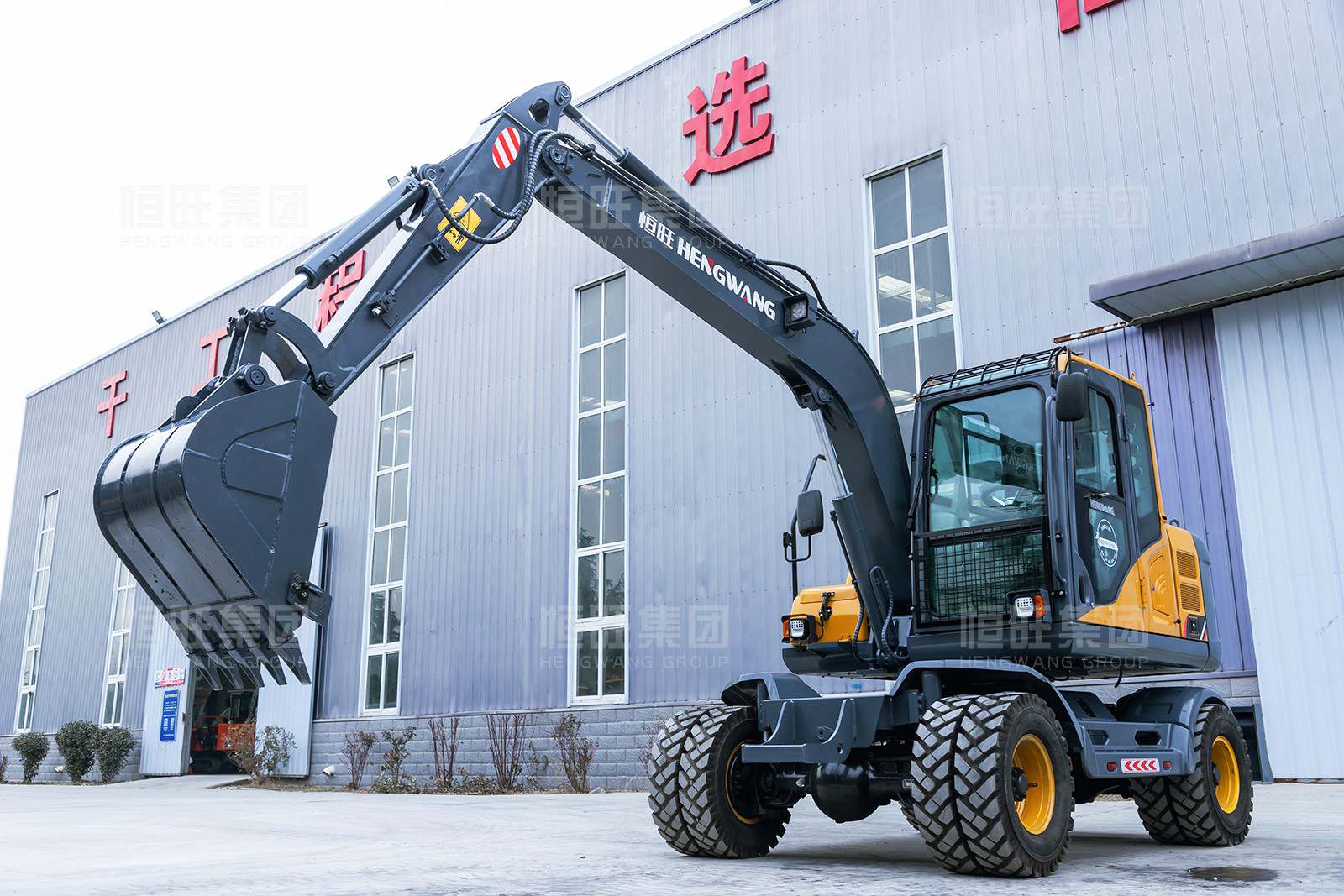

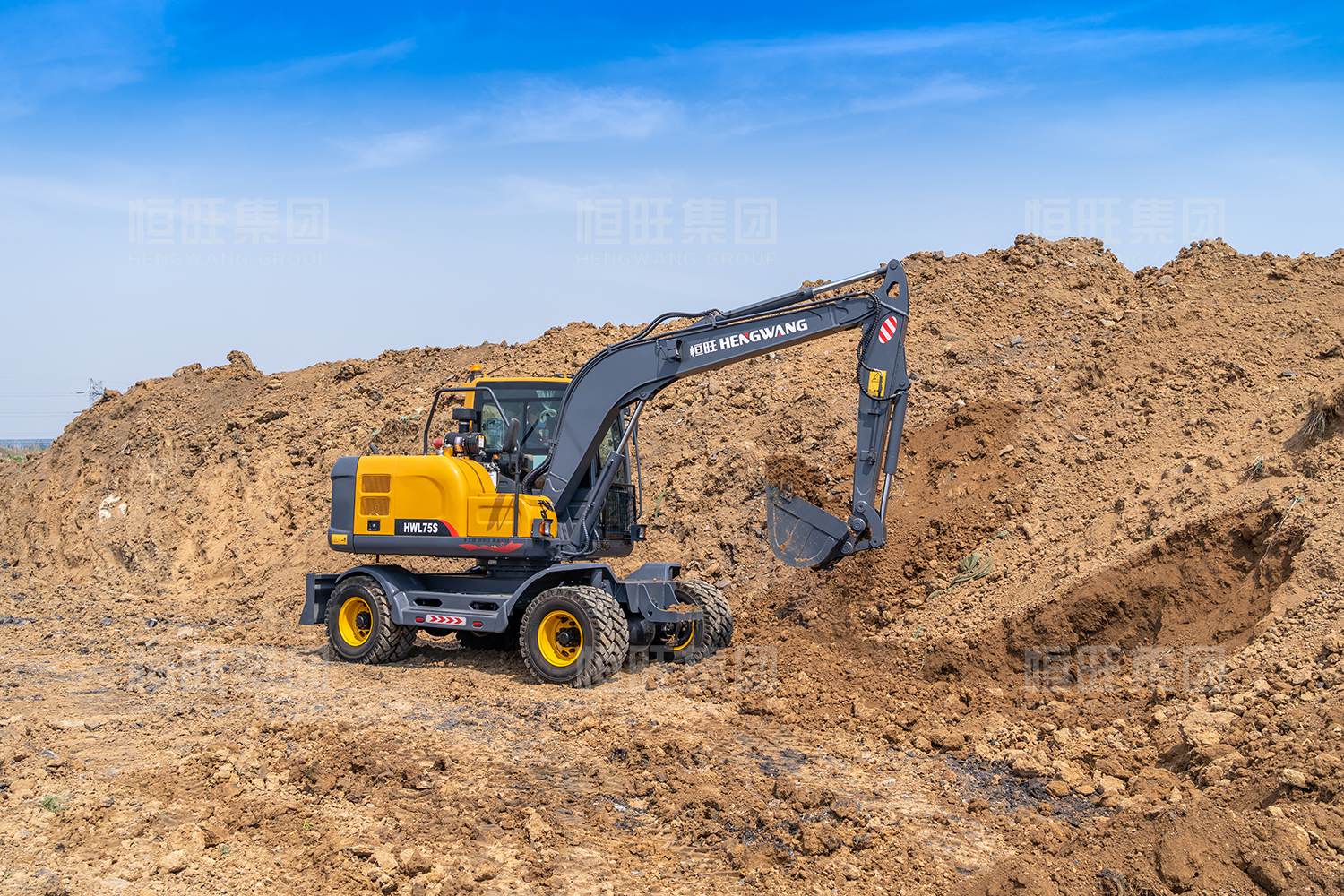

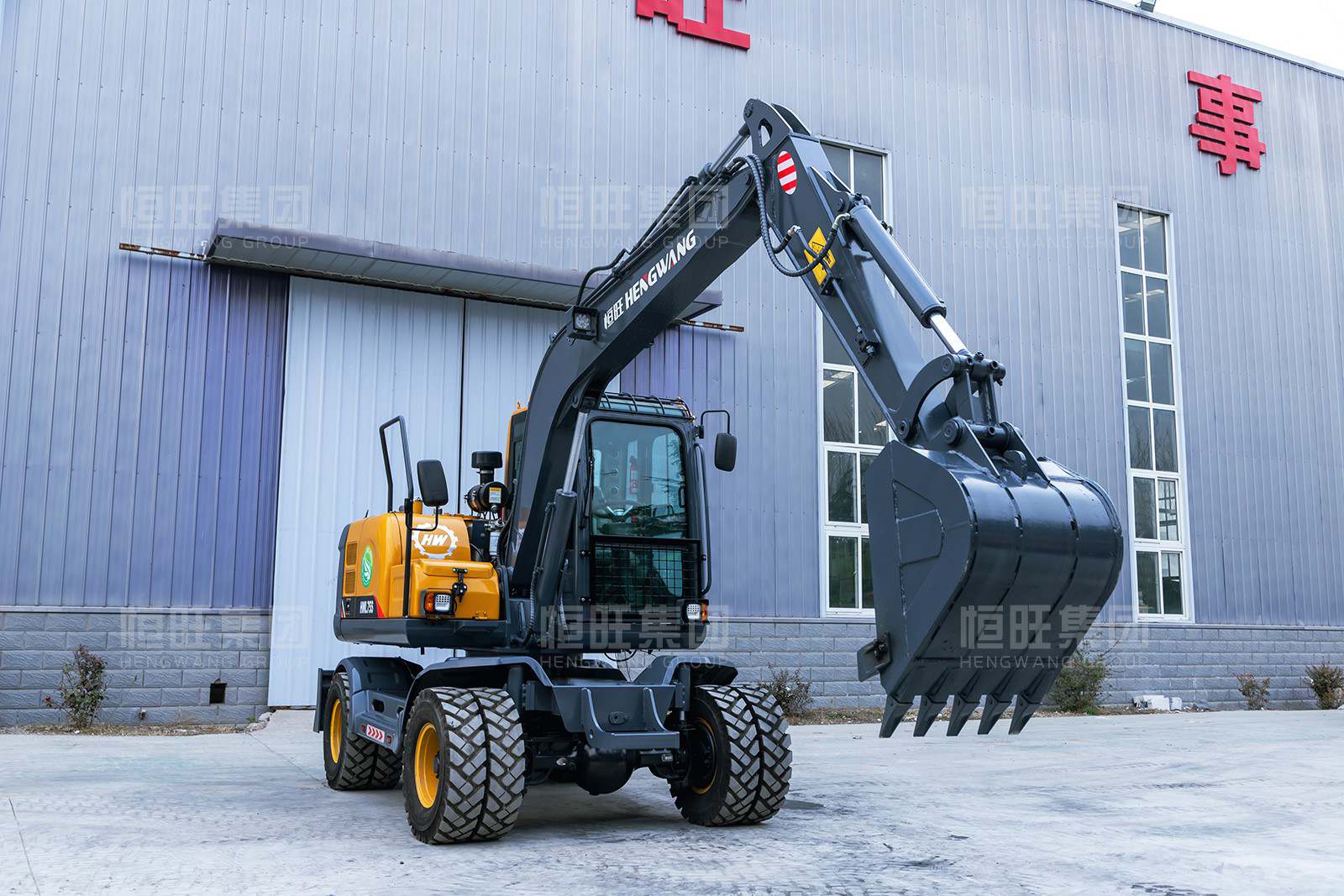

HW-75S wheeled excavator is suitable for landscaping, housing construction, municipal public, earth and stone works,  municipal engineering, road surface repair, concrete crushing, buried cables, laying of water pipes, dredging of rivers and  ditches and other operating environments.

It has the functions of excavating, crushing, hook clearing, drilling, and bulldozing, and the accessories can be replaced quickly.  The utilization rate of the machine is greatly improved, and it can be applied to various soil types. The use effect is good, the  operation is simple, the flexibility is high, the transportation is convenient, and the action is fast. and other advantag.

Parameter

Product upgarade new experience

The excavation height of the whole machine is 6.68 meters, and the excavation depth is 3.35 meters. According to customer requirements, the extended arm can also be customized to increase the excavation height and depth, and the body can be replaced with the corresponding cast iron counterweight.

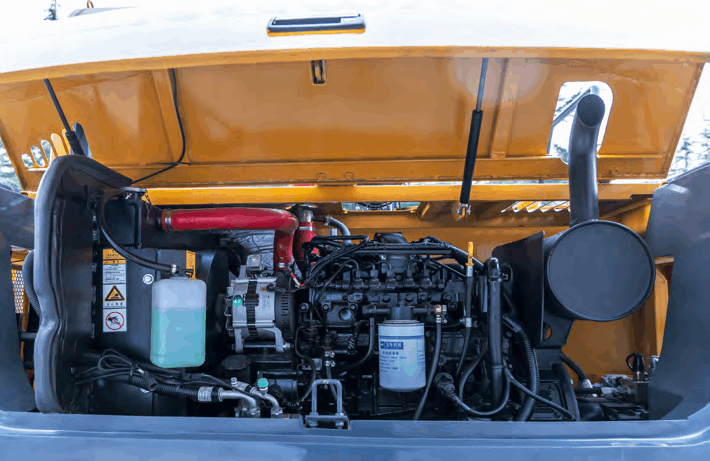

Powertrain:Equipped with Guangxi Yuchai and Zhejiang Xinchai turbocharged engines, the power output is more stable, the operation of the whole

machine is smoother, the fuel consumption is low, and the power is sufficient.

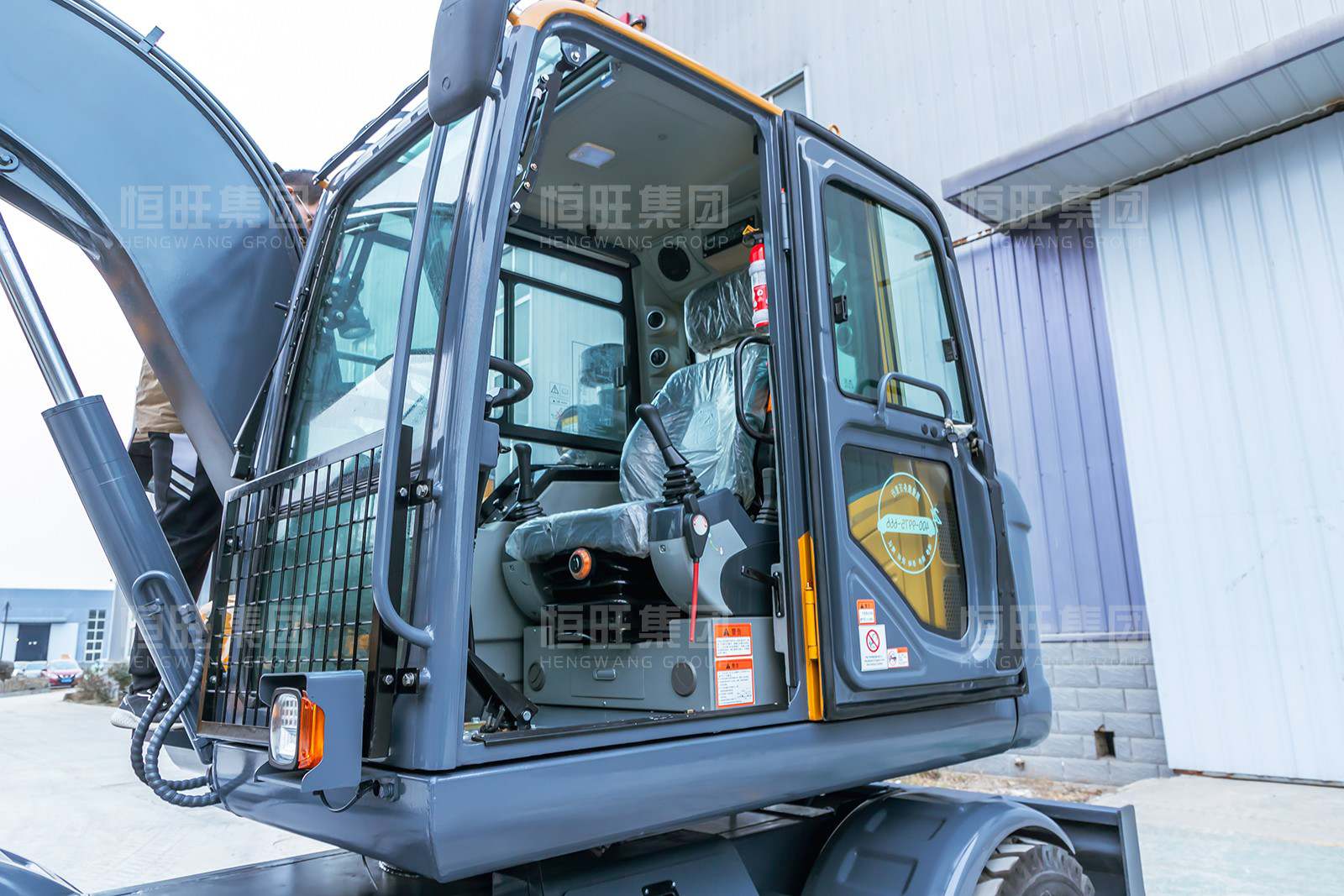

Driver's Cab:The interior of the cab is equipped with a reversing image and an electronic display screen, making driving safer; the integrated glass in front of the cab can be lifted and placed at any time, with a wide field of view, good reliability, and lower noise; the space seat greatly relieves the fatigue of the driver; Heating and cooling air conditioners are more comfortable; fans and audio are all available.

Hydraulic system:Equipped with load-sensing system variable plunger pump and imported hydraulic system, the whole machine has higher sensitivity and faster response speed, realizes efficient matching of engine/pump/valve, and improves the overall energy efficiency ratio of the whole machine operation.

Walking System:The standard configuration is pneumatic rubber tires, which are flexible, easy to move, low in cost, low in fuel consumption, fast in walking speed, and small in damage to the ground. The rubber tires also have the function of shock absorption and buffering; solid tires can also be replaced according to the customer's working environment.Stronger, to cope with harsher working environment.

Main features

1.  Enhance your productivity with increased speed and higher torque.

2. The HWL75S enables extended work periods while being cost-effective.

3. Its compact front and rear swing radius make it ideal for operating in limited spaces.

Convenient Maintenance

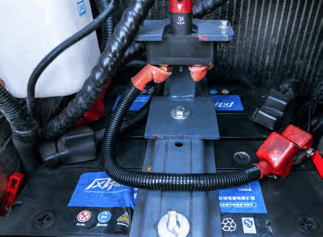

1.The electrical components are installed centrally, and the maintenance can be done by opening the front cover, which is easy to operate.

2.The cover is made of all steel, which is durable and recyclable.

3.It adopts the opening method of the large-area cover. After opening, it can stand on the ground for daily maintenance and maintenance. It is convenient for maintenance and good in accessibility.

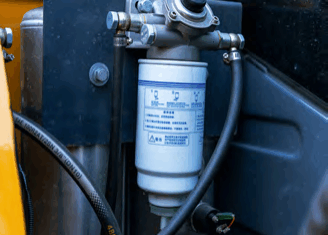

4.The air filter, oil-water separator, fuel filter, engine oil filter, fuse box, etc. are within easy reach, making maintenance very convenient.

5.Grease filling: The grease filling port is arranged on the same side of the excavator, which is more convenient for lubrication and maintenance.

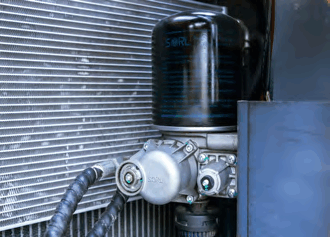

6.Radiator: There is a special protective net on the outside, and the dirt is blocked outside the protective net. You only need to remove the protective net for cleaning.

After sales service

24 Hours Telephone:If you have any needs, just call the 24-hour after-sales service hotline 400-9975-666.

15 Minutes To Respond:After receiving the after-sales demand, the after-sales service engineer will take the initiative to get in touch with you, ask you about the equipment  situation and service needs, and deal with the problem through remote guidance such as telephone and WeChat video.

24 hours departure:If the telephone guidance cannot handle the fault well, the service engineer will set off with the maintenance tools within 24 hours, go to the site where  the equipment is located, and perform on-site maintenance services.

Handling of major situations:In major and special circumstances, the service system will start a rapid response mechanism, an expert support mechanism and a green channel  for accessories.

Telephone interviews:After the on-site service is completed, the call center of the company's headquarters will have a service specialist to conduct a return call for each  service, track the completion status and service quality, listen to customer opinions and suggestions, and feed back to each functional department  for implementation and improvement, so as to provide customers with better quality.
